Stainless Steel Pipe Fittings
Butt weld and socket weld fittings — elbows, tees, reducers, caps, crosses per ASME B16.9, available in all material grades.
Overview

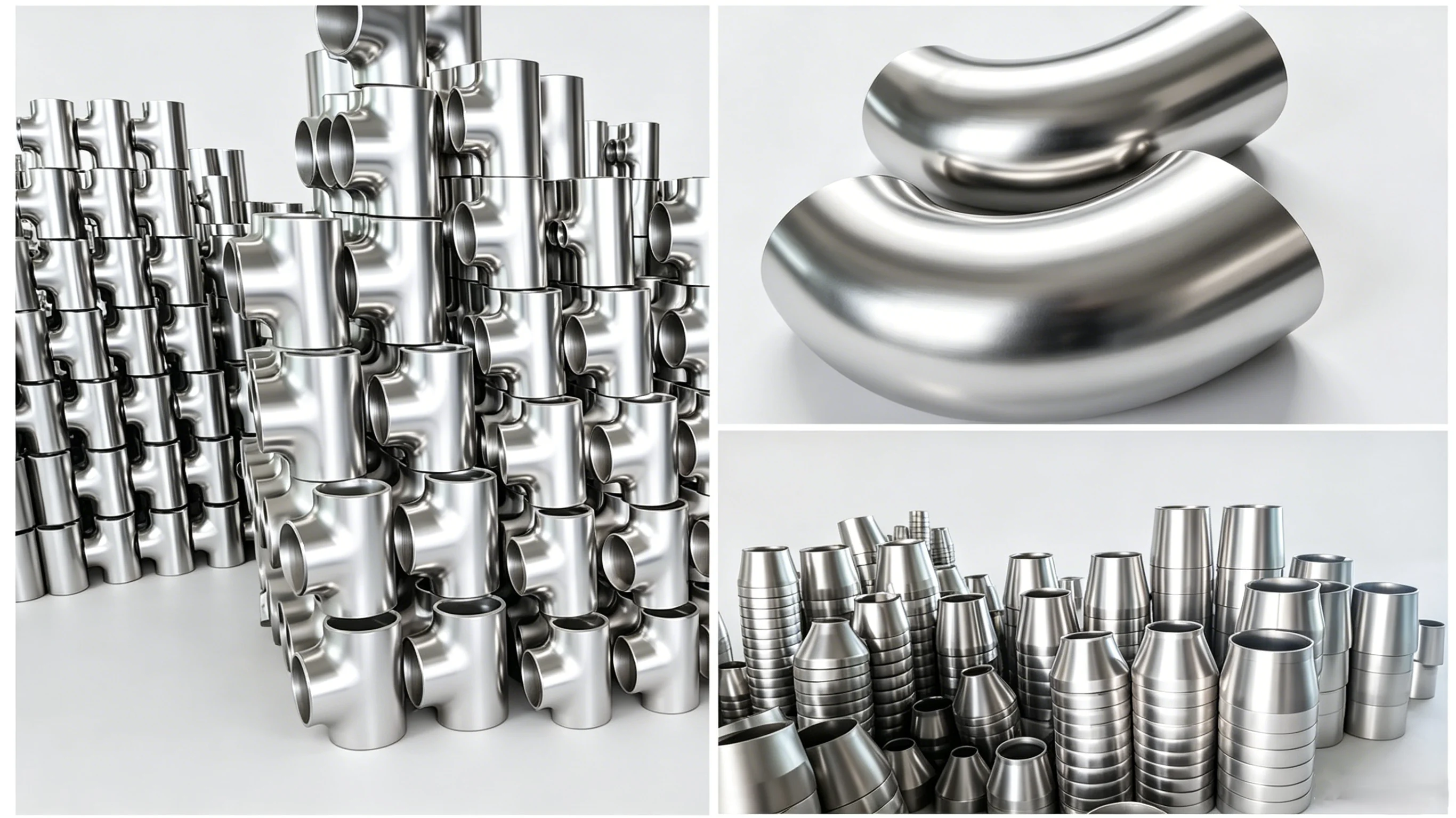

TOKO TECH supplies a comprehensive range of stainless steel butt weld and socket weld pipe fittings manufactured to ASME B16.9 and ASME B16.11. Our fitting inventory covers all standard types (elbows, tees, reducers, caps, crosses, stub ends) in sizes from 1/2" to 48" across the full spectrum of austenitic, duplex, and nickel alloy grades.
Explore by Type
Select a specific type below for detailed specifications, mechanical properties, and applications:

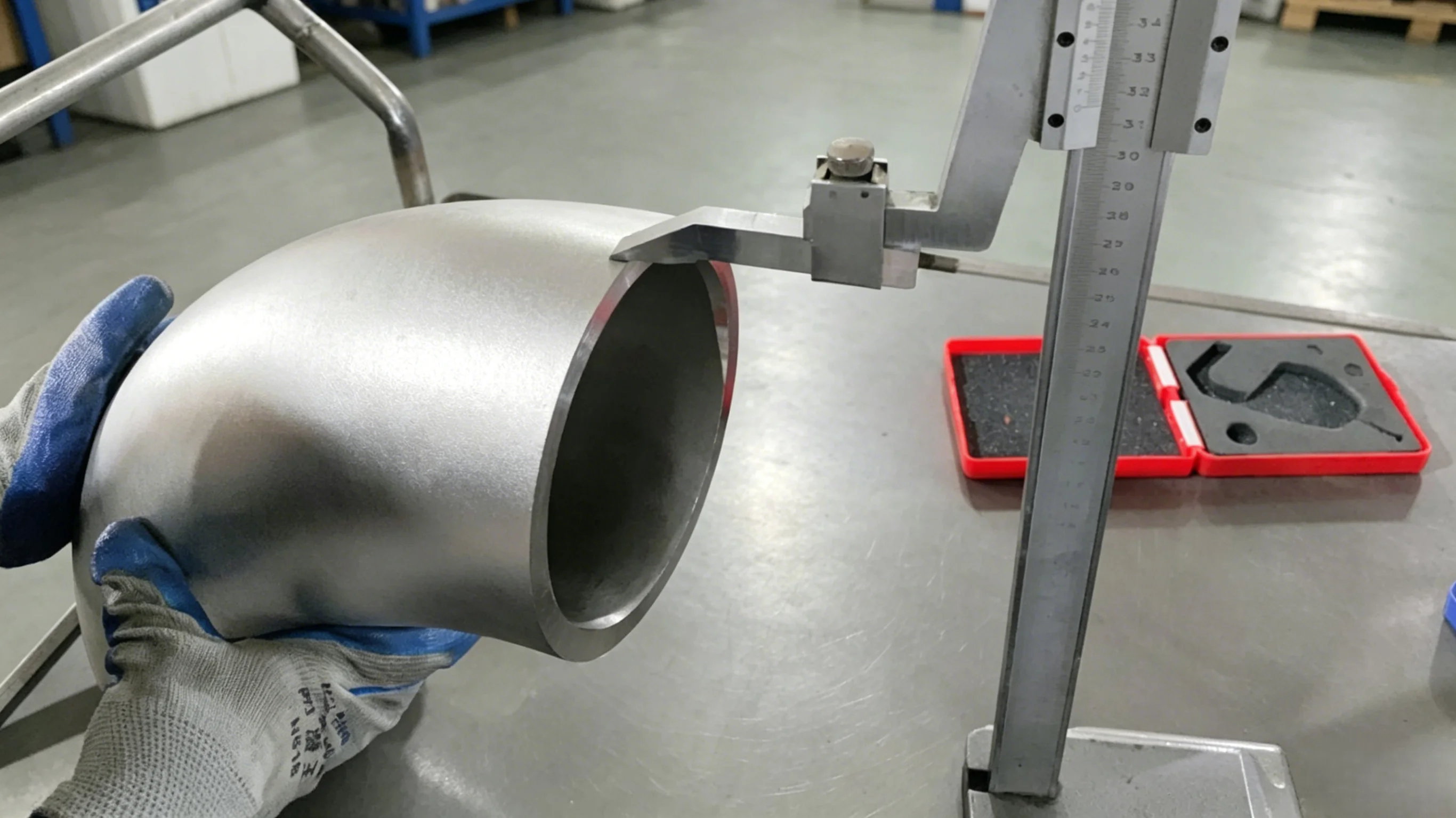

Key Features & Quality Control
Specifications
| Process | Material | OD Range | WT Range | Standard |
|---|---|---|---|---|
| Butt Weld | 304 / 304L | 1/2" – 48" (DN15 – DN1200) | SCH 5S – XXS | ASME B16.9 |
| Butt Weld | 316 / 316L | 1/2" – 48" (DN15 – DN1200) | SCH 5S – XXS | ASME B16.9 |
| Butt Weld | Duplex 2205 | 1/2" – 24" (DN15 – DN600) | SCH 5S – SCH 80S | ASME B16.9 |
| Socket Weld | 304 / 316L | 1/8" – 4" (DN6 – DN100) | 3000# / 6000# | ASME B16.11 |
| Threaded | 304 / 316L | 1/8" – 4" (DN6 – DN100) | 2000# / 3000# / 6000# | ASME B1.20.1 |
Typical Applications
Pipeline Direction Changes
Long-radius and short-radius elbows for 45° and 90° directional changes in process piping systems.
Branch Connections
Equal and reducing tees for creating branch connections in main pipe runs — available in straight and reducing configurations.
Diameter Transitions
Concentric and eccentric reducers for smooth transitions between different pipe sizes, minimizing turbulence and pressure drop.
Pipeline Termination
Butt weld caps for permanently closing pipe ends — manufactured to match pipe OD and wall thickness schedules.
Applicable Standards
Explore Materials Used in This Product
Review detailed material data, chemical composition, and mechanical properties for every grade we offer:
Need a Quote for Stainless Steel Pipe Fittings?
Send us your specifications — material grade, OD, wall thickness, and length — and we'll get back within 24 hours.
